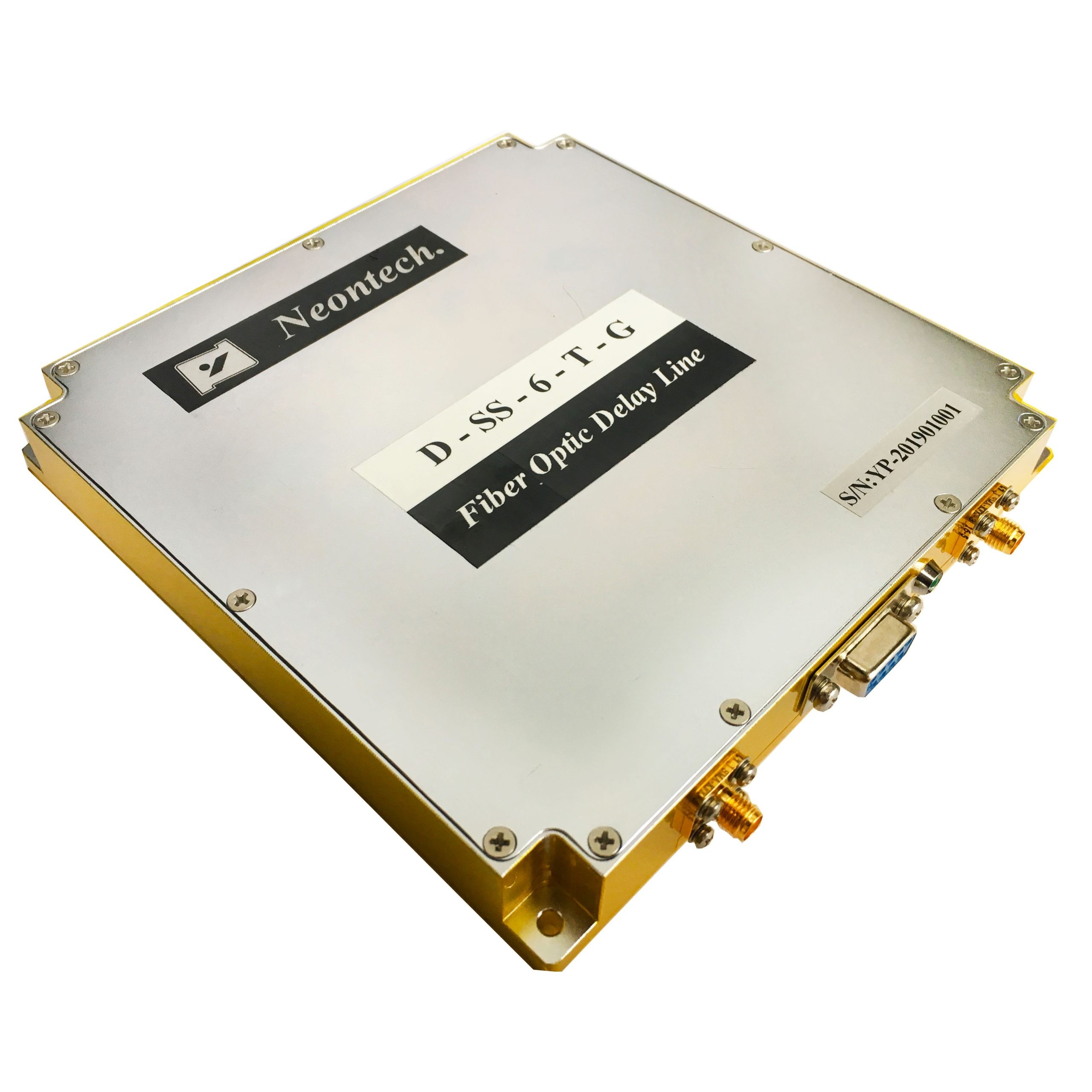

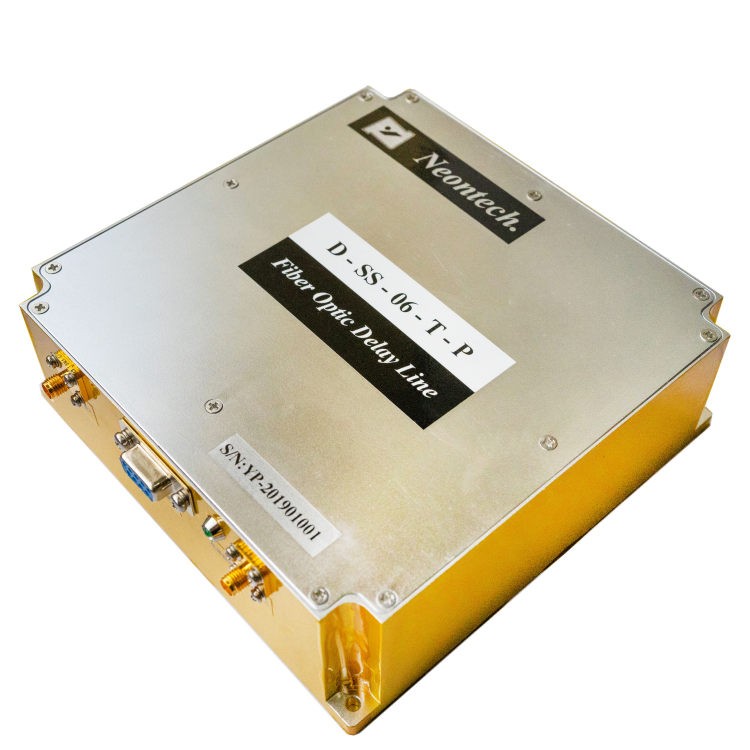

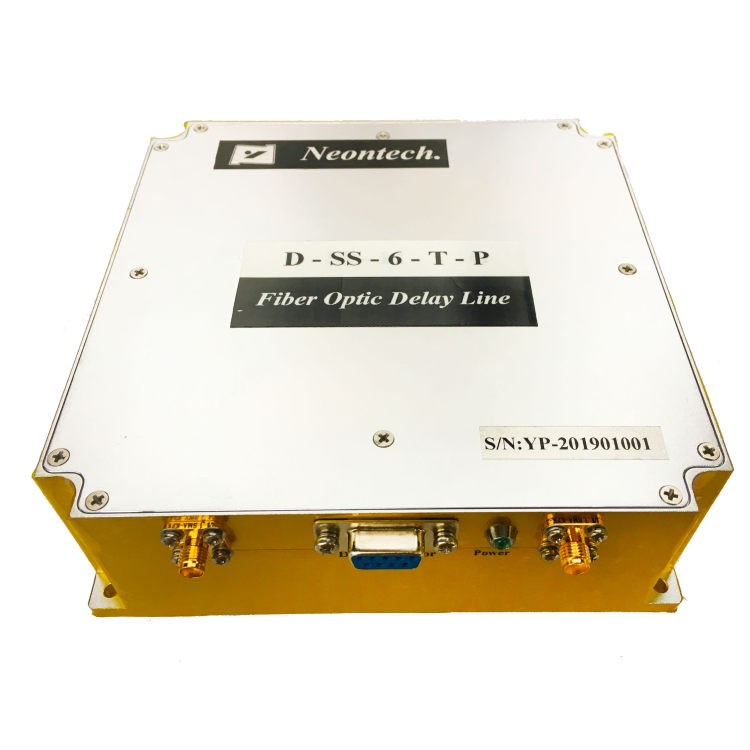

D-SS-06-T Series Fiber Optic Delay Line & Optical Simulator
- Depending on Microwave-photonic technology, the D-SS-06-T series optical delay line & optical simulator delivers unmatched performance for radar testing, signal processing, phased antenna array, antenna simulation, and phase noise testing.
- It can work effectively in the whole P/L/S/C bandwidth, with less insertion loss, high dynamic range, strong electromagnetic isolation, and triple transit signals that are immeasurable.
Introduce of D-SS-06-T Series Fiber Optic Delay Line
Depended on Microwave-photonic technology, the D-SS-06-T series fiber optic delay line & optical simulator delivers unmatched performance for radar testing, signal processing, phased antenna array, antenna simulation, and phase noise testing. It can work effectively in the whole P/L/S/C bandwidth, with less insertion loss, high dynamic range, strong electromagnetic isolation, and triple transit signals that are immeasurable.
Fiber Optic Delay Line Features
※ Bandwidth to 6.5GHz
※ High dynamic range
※ Wide temperature application
※ Low amplitude response
Fiber Optic Delay Line Applications
※ Radar testing/calibration
※ Signal processing
※ Electronic war
※ Phased array antenna
※ Antenna simulation

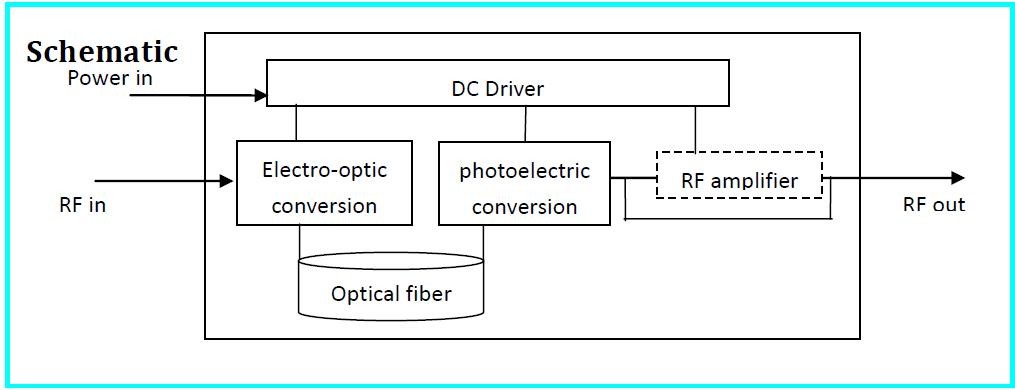

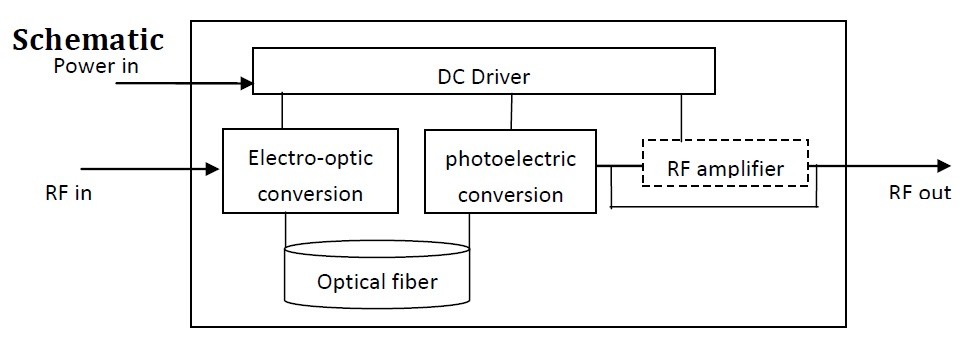

Principle Diagram of Fiber Optic Delay Line
Optical and Electrical Specification (TC = 22±3℃)
Parameter | Min. | Typ. | Max. | Unit | Remark |
Frequency Range | 0.1 | – | 6.5 | GHz | |
Amplitude Flatness | – | ±2 | ±2.5 | dB | |
Time Delay | 0.01 | – | 150 | us | Customized |
Delay Accuracy | -5‰ | – | +5‰ | – | |
Insertion Loss | 0 | 10 | 20 | dB | Customized |
Input VSWR | – | 1.5 | 2 | – | |
Output VSWR | – | 1.5 | 2 | – | |
Impedance | – | 50 | – | Ω | |
Input 1 dB Compression | – | 10 | 15 | dBm | |
Spurious Signal Rejection Ratio | 60 | – | – | dBc | |
Noise Figure | – | 40 | 50 | dB | 5us, 25℃ |
Operate Temperature | -20 | – | 70 | ℃ | |
Storage Temperature | -40 | – | 80 | ℃ | |
Relative Delay vs. Temperature | – | – | 7 | ppm/℃ | |
Insertion Loss vs. Temperature | – | 3 | 6 | %/℃ |
Power Supply (TC = 22±3℃)
Pin | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
Voltage | NC | GND | +12 V | NC | |||||
Rated current | – | – | 0.15 A | – | |||||
Max Current | – | 1 A |
Test condition: Vin=+12V

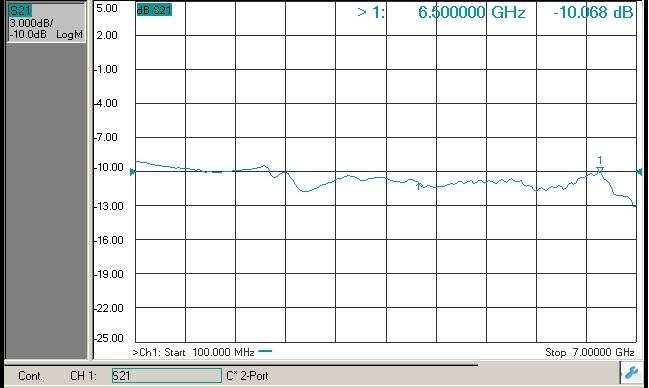

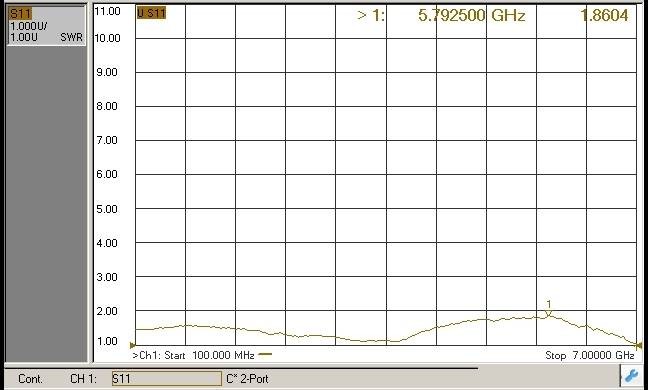

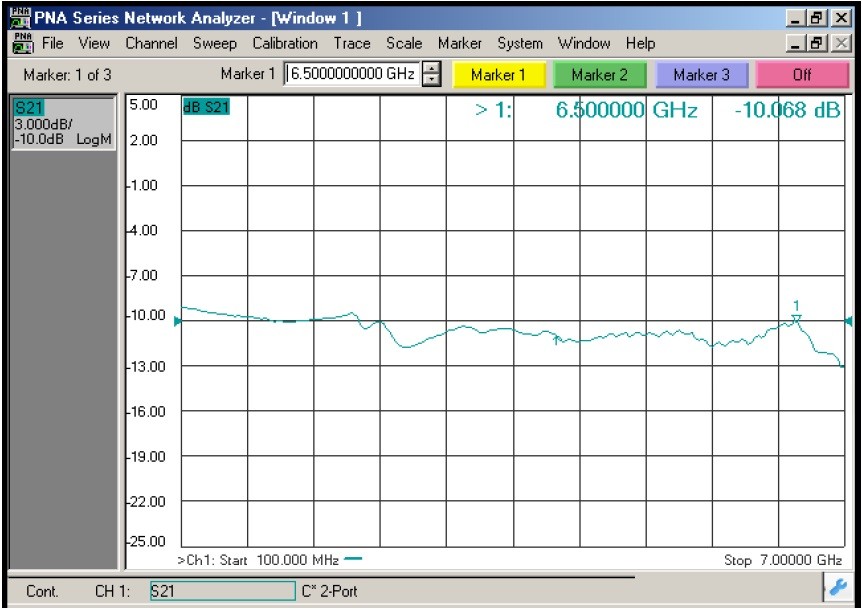

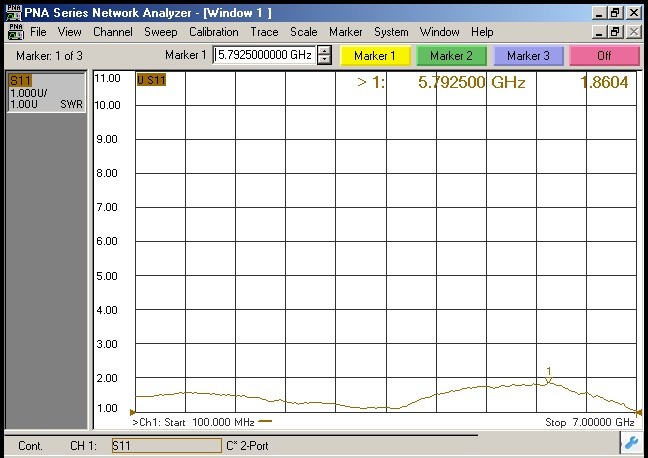

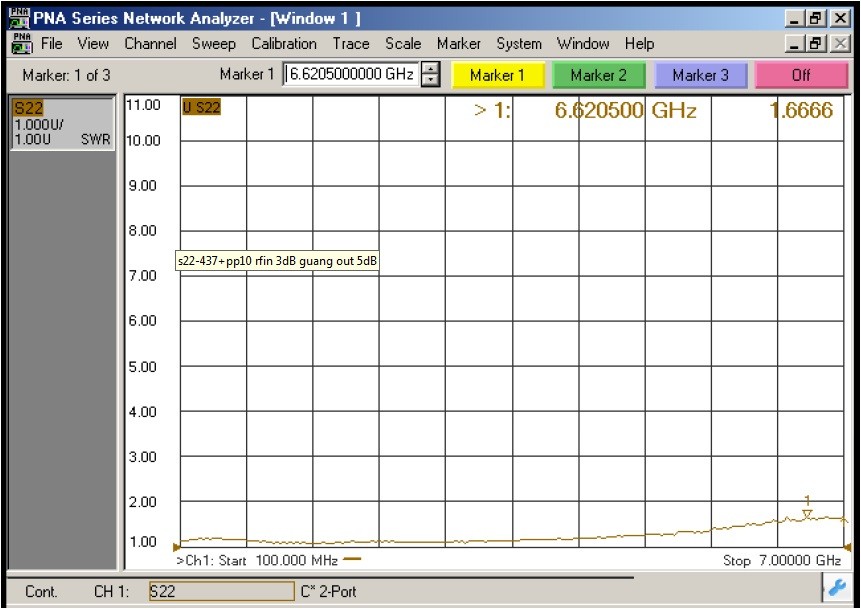

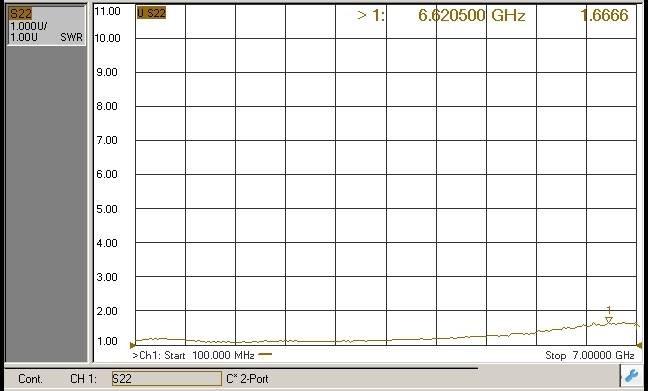

Typical Response Curves

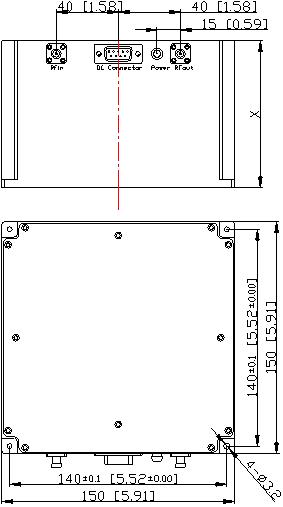

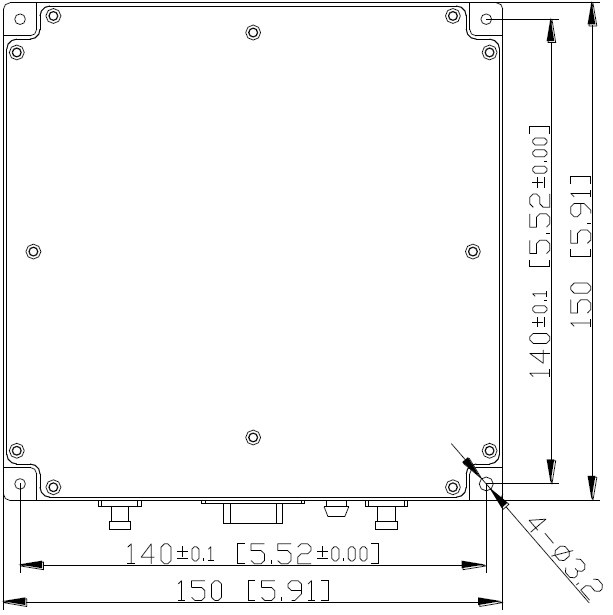

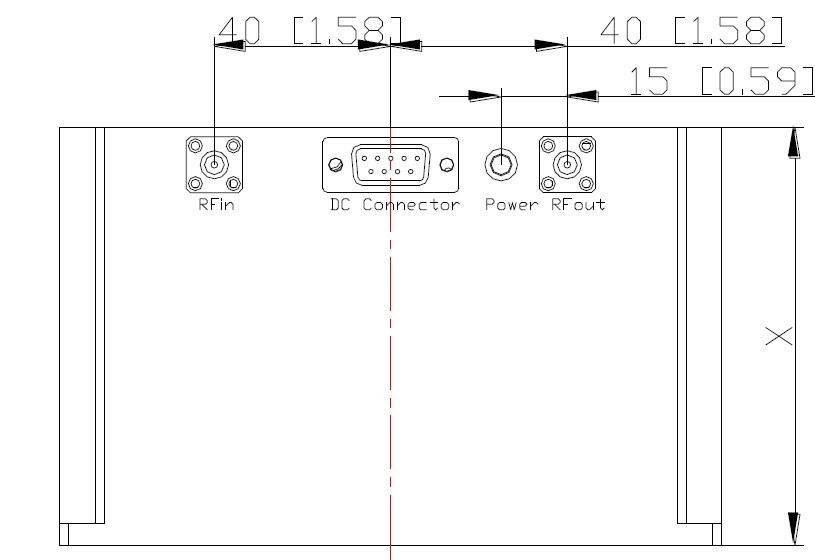

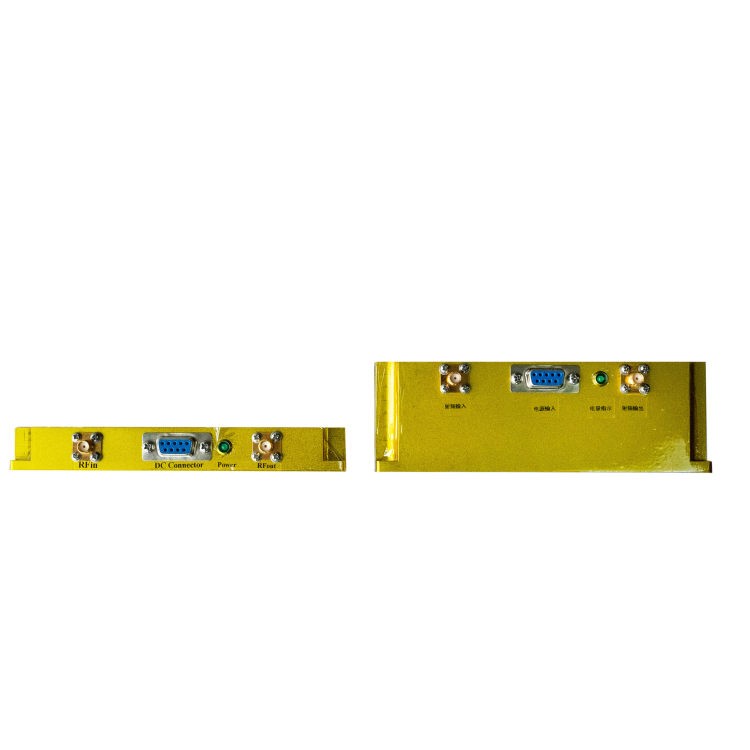

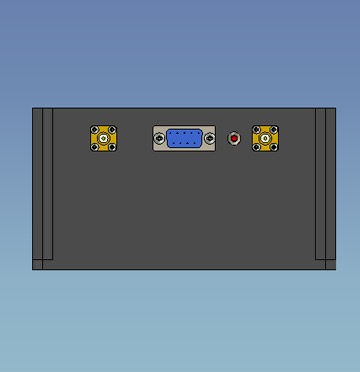

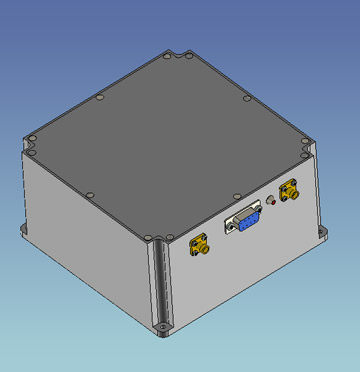

Dimension Unit: mm[inch]
RF connector: SMA-K(Customized)
DC connector: DE-9PS(Customized)
Height value: X (mm)
Height value: X (mm) | |||||||
Product Type | D-SS-06-T-G | Remark | |||||
Time delay(us) | 8 | 20 | 35 | 50 | 60 | 80 | Standard |
X(mm) | 37 | 50 | 65 | 80 | 90 | 110 | |
Product Type | D-SS-06-T-P | Remark | |||||
Time Delay(us) | 8 | 35 | 60 | 80 | 110 | 150 | Compact |
X(mm) | 20 | 45 | 55 | 65 | 78 | 95 |

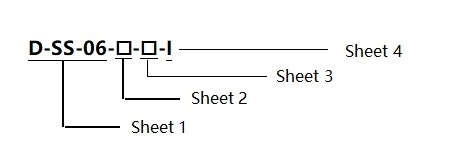

Ordering Information
Sheet 1:
Symbol | Description |
D-SS-06 | Fixed fiber optic delay line, Frequency: 0.1~6.5GHz |
Sheet 2:
Symbol | Description |
T | Time delay, Customized, 0.01 to 150 us |
Sheet 3:
Symbol | Dimension(refer to Height value: X (mm) ) |
G | Standard structure |
P | Compact structure |
CM | Customized structure |
Sheet 4:
Symbol | Description |
I | Industrial grade:Operate Temperature: -20℃ to +70℃ Storage Temperature: -40℃ to +80℃ |
For example: D-SS-06-08-G-I which means fixed fiber optic delay line, frequency: 0.1~6.5GHz, time delay: 8us, standard structure, operate temperature: -20℃ to +70℃, storage temperature: -40℃ to +80℃.
