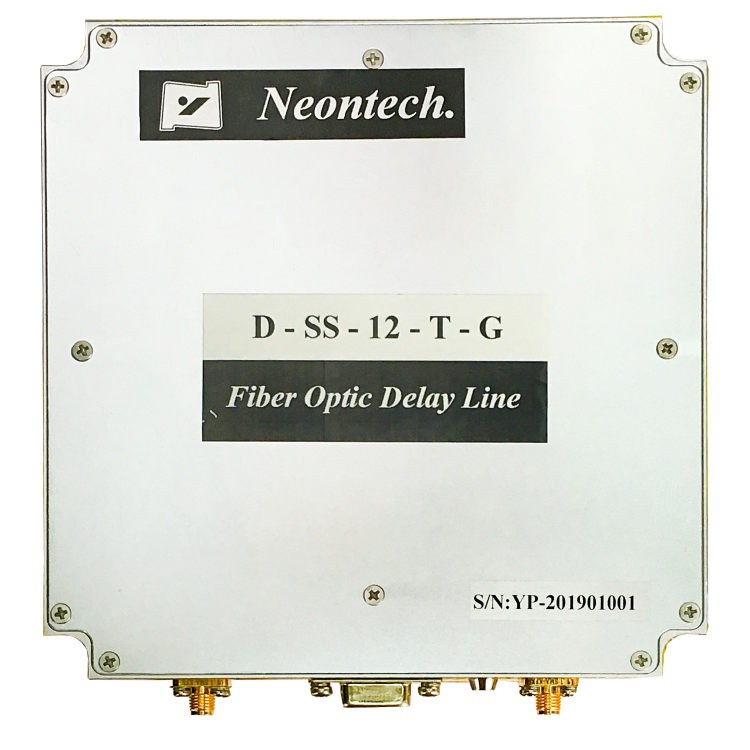

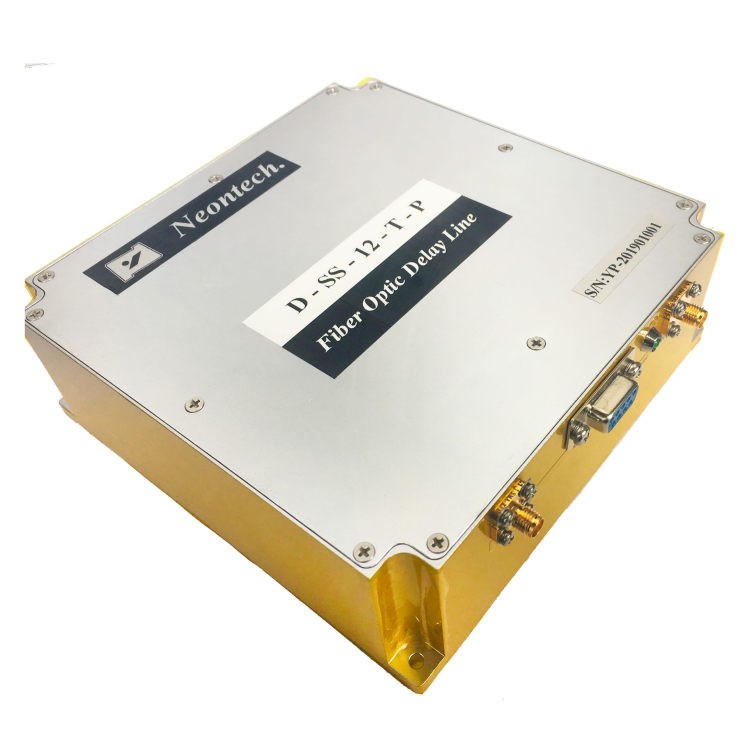

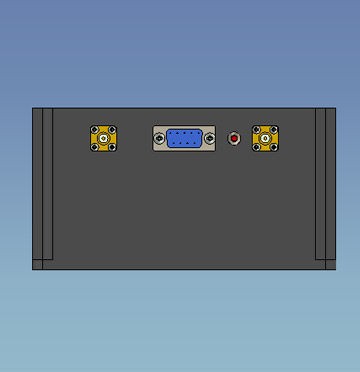

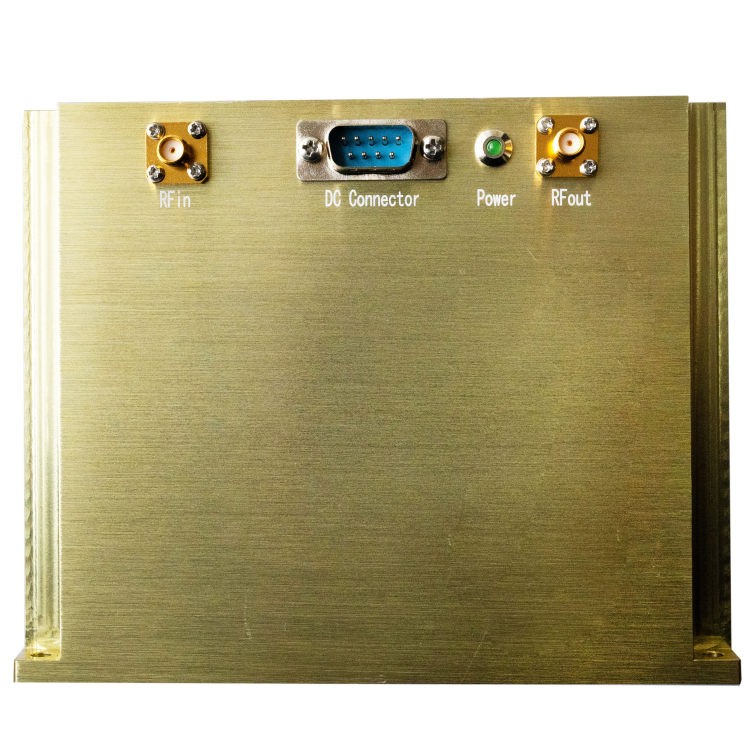

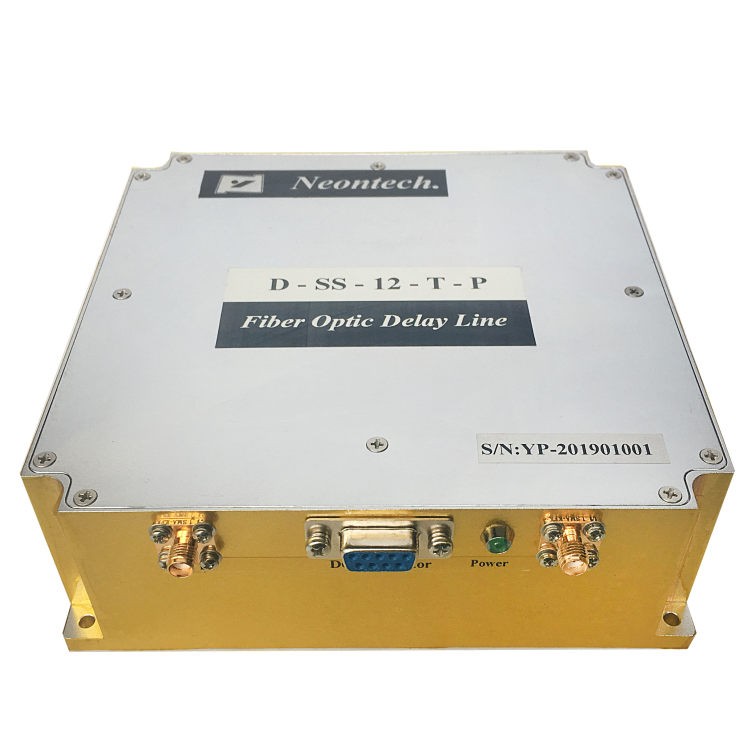

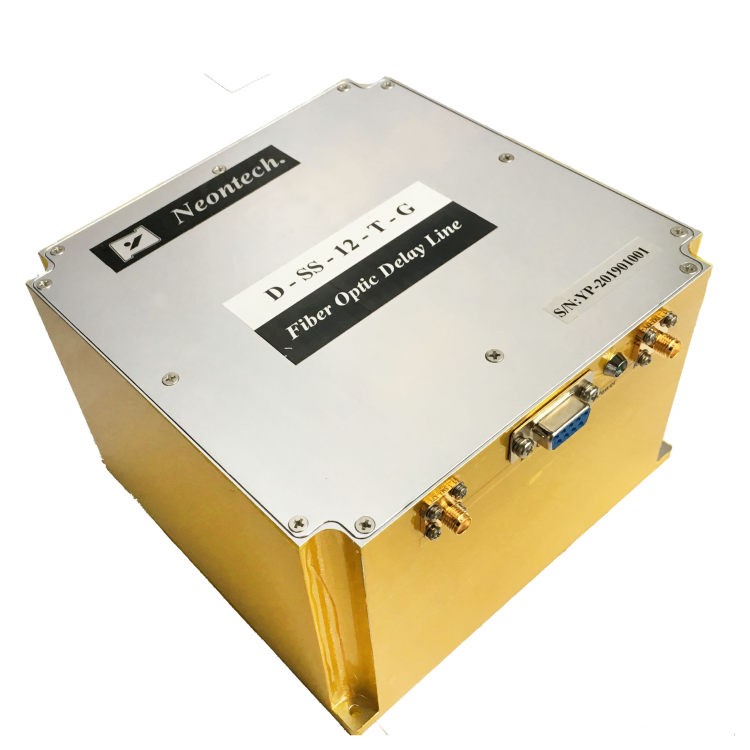

D-SS-12-T Series Variable Optical Delay Line & Optical Simulator
- Depending on Microwave- photonic technology, the D-SS-12-T series optical delay line & optical simulator delivers unmatched performance for radar testing, signal processing, phased antenna array, antenna simulation, and phase noise testing.
- It works effectively in the whole L/S/C/X bandwidth, with less insertion loss, high dynamic range, strong electromagnetic isolation, and triple transit signals that are immeasurable.
Product Introduce
Depended on Microwave- photonic technology, the D-SS-12-T series variable optical delay line & optical simulator delivers unmatched performance for radar testing, signal processing, phased antenna array, antenna simulation, and phase noise testing. It works effectively in the whole L/S/C/X bandwidth, with less insertion loss, high dynamic range, strong electromagnetic isolation, and triple transit signals that are immeasurable.
Variable Optical Delay Line Features
※ Bandwidth to 12GHz
※ High dynamic range
※ Wide temperature application
※ Low amplitude response
Variable Optical Delay Line Applications
※ Radar testing/calibration
※ Signal processing
※ Electronic war
※ Phased antenna array
※ Antenna simulation

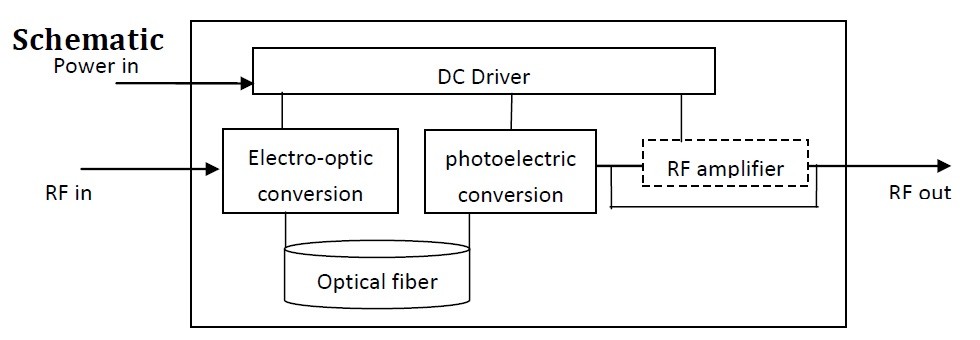

Principle diagram of Variable Optical Delay Line
Optical and Electrical Specification (TC = 22±3℃)
| Parameter | Min. | Typ. | Max. | Unit | Remark |
| Frequency Range | 1 | – | 12 | GHz | |
| Amplitude Flatness | – | ±2 | ±2.5 | dB | |
| Time Delay | 0.01 | – | 150 | us | Customized |
| Delay Accuracy | -5‰ | – | +5‰ | – | |
| Insertion Loss | 0 | 20 | 30 | dB | Customized |
| Input VSWR | – | 1.8 | 2 | – | |
| Output VSWR | – | 1.8 | 2 | – | |
| Impedance | – | 50 | – | Ω | |
| Input 1 dB Compression | – | 13 | 17 | dBm | |
| Spurious Signal Rejection Ratio | 60 | – | – | dBc | |
| Noise figure | – | 45 | 55 | dB | 5us, 25℃ |
| Operate Temperature | -20 | – | 70 | ℃ | See Ordering Information |
| Storage Temperature | -40 | – | 80 | ℃ | |
| Relative Delay vs. Temperature | – | – | 7 | ppm/℃ | |
| Insertion Loss vs. Temperature | – | 2 | 4 | %/℃ |
Power Supply (TC = 22±3℃)
| Pin | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
| Voltage | NC | GND | +12 V | NC | |||||
| Rated current | – | – | 0.15 A | – | |||||
| Max Current | – | 1 A | |||||||
Test condition: Vin=+12V

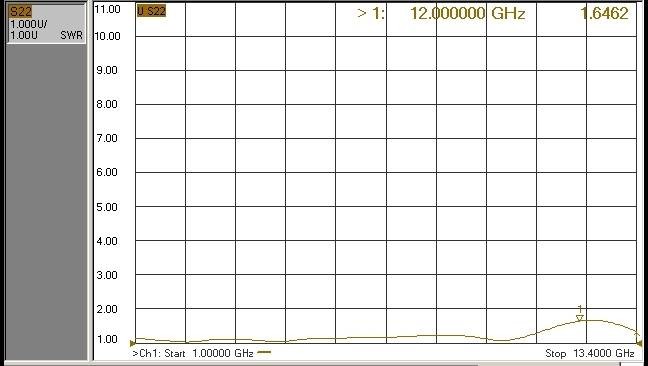

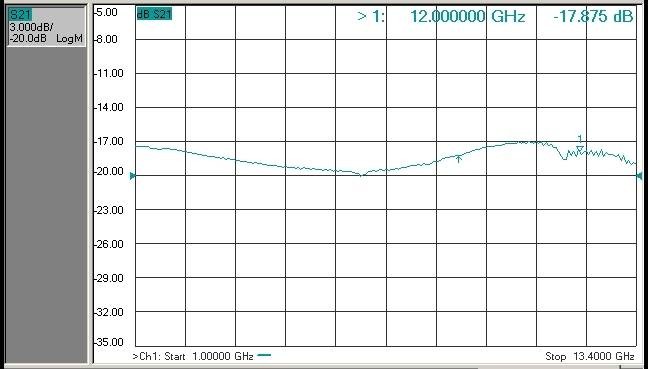

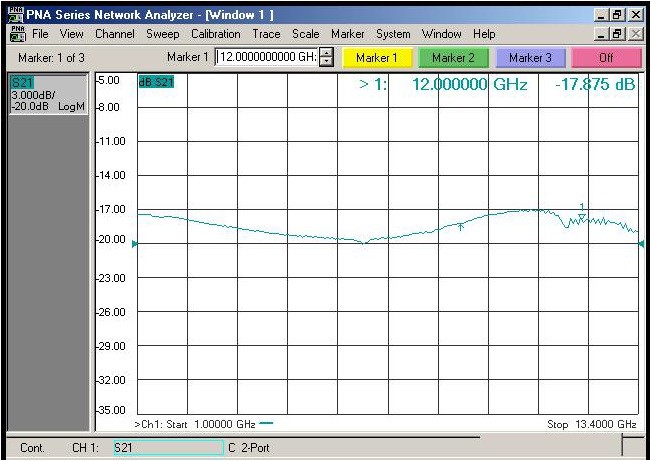

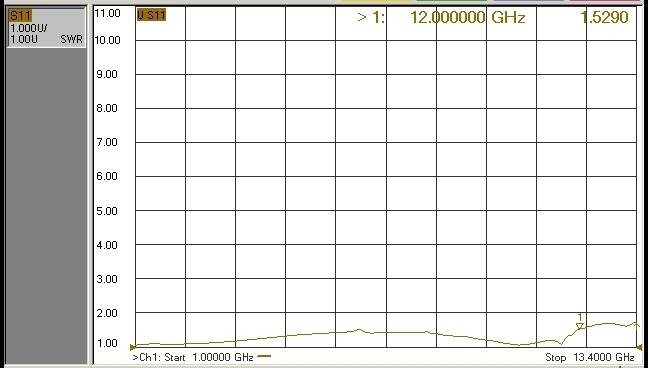

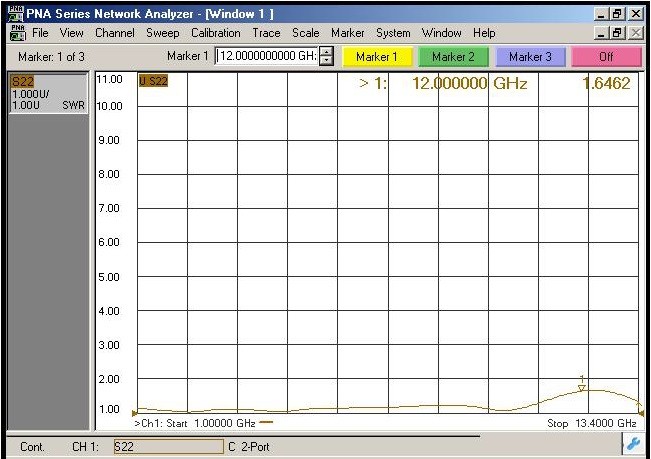

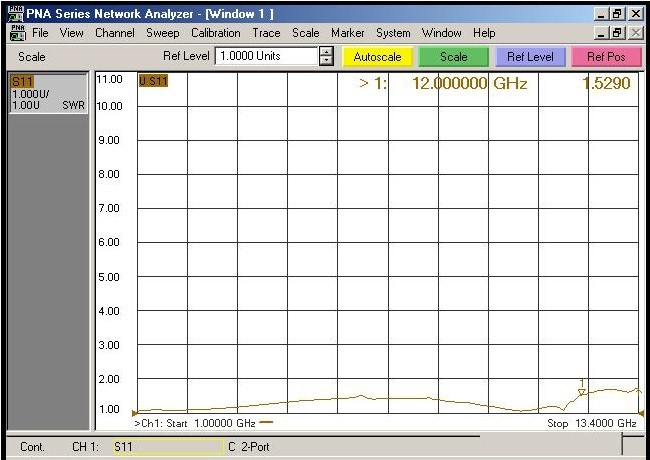

Typical Response Curve

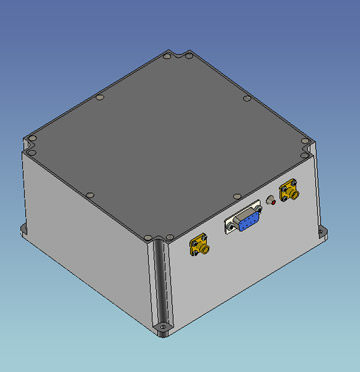

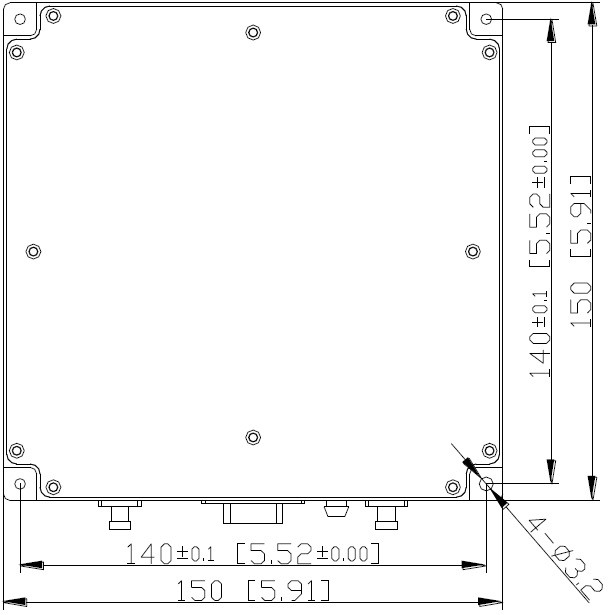

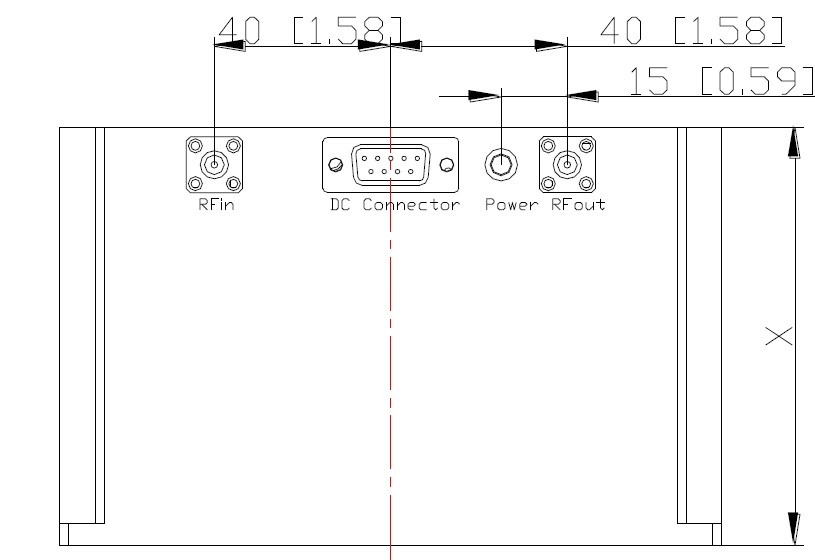

Dimension Unit: mm[inch]
RF Connector: SMA-K（Customized）
DC Connector: DE-9PS（Customized）
Height Value: X (mm)
| Height value: X (mm) | |||||||
| Product Type | D-SS-12-T-G | Remark | |||||
| Time delay（us） | 8 | 20 | 35 | 50 | 60 | 80 | Standard |
| X（mm） | 37 | 50 | 65 | 80 | 90 | 110 | |
| Product Type | D-SS-12-T-P | Remark | |||||
| Time Delay（us） | 8 | 35 | 60 | 80 | 110 | 150 | Compact |
| X（mm） | 20 | 45 | 55 | 65 | 78 | 95 | |

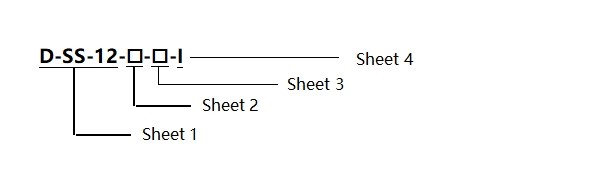

Ordering Information
Sheet 1：
| Symbol | Description |
| D-SS-12 | Fixed fiber optic delay line, Frequency: 1~12GHz |
Sheet 2：
| Symbol | Description |
| T | Time delay , Customized, 0.01 to 150 us |
Sheet 3：
| Symbol | Dimension(refer to Height value: X (mm) ) |
| G | Standard structure |
| P | Compact structure |
| CM | Customized structure |
Sheet 4：
| Symbol | Description |
| I | Industrial grade:Operate Temperature: -20℃ to +70℃ Storage Temperature: -40℃ to +80℃ |
For example: D-SS-12-08-G-I which means fixed fiber optic delay line, frequency: 1~12GHz, time delay: 8us, standard structure, operate temperature: -20℃ to +70℃, storage temperature: -40℃ to +80℃.
