High-Speed Photodetectors and Key Optoelectronic Devices in Optical Fiber Communication

Optical fiber communication has revolutionized data transmission by enabling high-speed, long-distance, and low-loss signal transmission. At the core of this technology are optoelectronic devices, which convert electrical signals into optical signals and vice versa. Among these, high-speed photodetectors play a crucial role in detecting and converting optical signals back into electrical signals for further processing. This article explores the most commonly used high-speed photodetectors in optical fiber communication, followed by an overview of other essential optoelectronic components that contribute to the efficient functioning of optical communication systems.

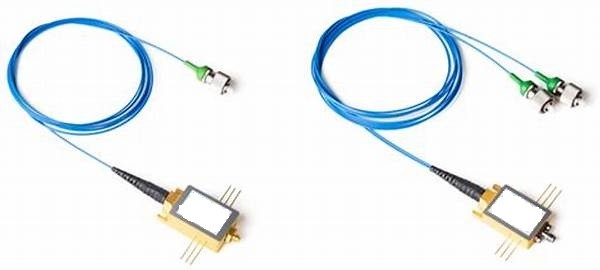

High-Speed Photodetectors in Optical Fiber Communication

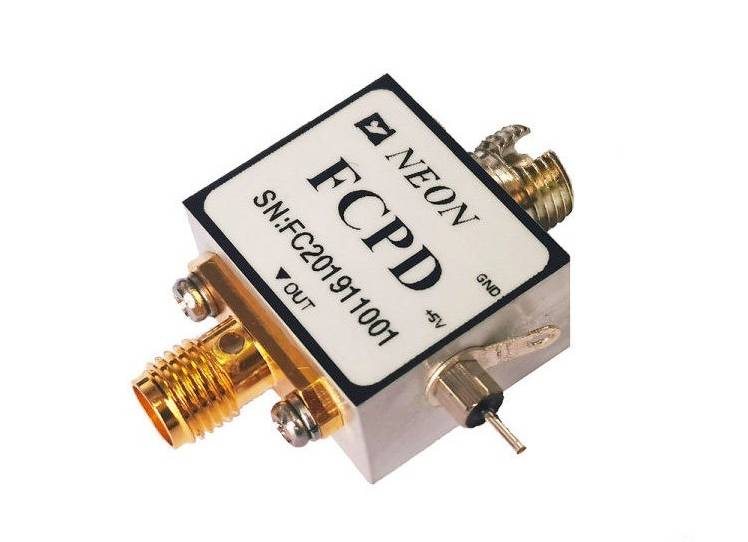

1. PIN Photodiode

A PIN photodiode is a widely used high-speed photodetector due to its simple structure and fast response. It consists of a P-type and N-type semiconductor with an intrinsic (I) layer in between, which increases the depletion region width and improves the quantum efficiency.

Principle of Operation:

• When an optical signal enters the depletion region, it generates electron-hole pairs.
• The built-in electric field in the depletion region separates these charge carriers, creating a photocurrent proportional to the incident light intensity.

Advantages:

• Fast response time due to a thin depletion layer.
• Low noise performance.
• High quantum efficiency across a wide wavelength range.

Applications:

• Used in high-speed optical communication networks.
• Found in optical receivers for short-haul and long-haul transmission systems.

2. Avalanche Photodiode (APD)

A snowball photodiode, or avalanche photodiode (APD), features an internal gain mechanism that amplifies the photocurrent using impact ionization, making it highly sensitive to weak optical signals.

Principle of Operation:

• Incident photons generate electron-hole pairs.
• A high electric field in the multiplication region accelerates these carriers, causing secondary ionization and producing additional charge carriers.
• This internal gain enhances the signal-to-noise ratio (SNR) for low-light conditions.

Advantages:

• Higher sensitivity than PIN photodiodes.
• Enhanced signal detection at low optical power levels.

Disadvantages:

• Higher operating voltage requirements.
• Increased thermal noise, necessitating temperature compensation.

Applications:

• Used in long-distance optical fiber communication.
• Suitable for applications requiring low-light signal detection.

3. Waveguide Photodetector

Waveguide photodetectors are a class of high-speed photodetectors designed for integrated photonic circuits. They use waveguides to guide optical signals into the active region, where they are absorbed and converted into electrical signals.

Principle of Operation:

• Optical signals travel along a waveguide structure.
• The confined light enhances absorption efficiency, allowing for a thin absorbing layer that reduces capacitance and improves bandwidth.

Advantages:

• High-speed operation due to reduced carrier transit time.
• Compatible with integrated photonic circuits for compact and efficient designs.

Applications:

• Used in high-speed optical interconnects.
• Found in photonic integrated circuits (PICs) for advanced communication systems.

4. Superconducting Photodetector

A superconducting photodetector is a cutting-edge device that leverages the unique properties of superconducting materials to achieve ultra-fast and ultra-sensitive photodetection.

Principle of Operation:

• Superconducting materials exhibit zero electrical resistance below a critical temperature.
• When a photon strikes the superconductor, it disrupts the superconducting state, generating a measurable voltage signal.

Advantages:

• Extremely high sensitivity and fast response time.
• Capable of detecting single photons.

Disadvantages:

• Requires cryogenic cooling, increasing system complexity and cost.

Applications:

• Used in advanced optical communication research.
• Essential for applications such as quantum optics and astrophysics.

Other Key Optoelectronic Devices in Optical Fiber Communication

1. Semiconductor Laser (LD)

A semiconductor laser (laser diode, LD) is the primary light source in optical fiber communication, responsible for generating the optical carrier signal.

Key Parameters:

• Emission wavelength (commonly 1310 nm or 1550 nm).
• Output power and efficiency.
• Linewidth and stability.

Applications:

• Used in high-speed fiber optic transmitters.
• Integrated into dense wavelength division multiplexing (DWDM) systems.

2. Optical Modulator

Optical modulators encode electrical signals onto an optical carrier for transmission over fiber optic networks.

Types:

• Directly Modulated Lasers (DML): Modulation achieved by varying injection current.
• Externally Modulated Lasers (EML): Utilize external modulators such as Mach-Zehnder modulators for high-speed transmission.

3. Optical Amplifier

Optical amplifiers compensate for transmission losses by amplifying optical signals without conversion to electrical form.

Common Types:

• Erbium-Doped Fiber Amplifier (EDFA): Widely used in long-haul transmission.
• Raman Amplifier: Provides distributed amplification over fiber.

4. Optical Fiber Grating

An optical fiber grating is a passive device used for wavelength filtering and dispersion compensation.

Applications:

• Gain flattening in EDFAs.
• Wavelength division multiplexing (WDM) systems.

5. Optical Switch

Optical switches control the routing of optical signals between different channels in a network.

Functions:

• Network protection switching.
• Wavelength selection in reconfigurable optical add-drop multiplexers (ROADMs).

6. Optical Isolator and Optical Circulator

These devices ensure unidirectional signal transmission and prevent back reflections that could destabilize laser sources.

Applications:

• Used in optical amplifiers and laser sources.
• Essential for high-performance optical systems.

7. Optical Fiber Connector

Optical fiber connectors ensure precise alignment and low insertion loss when connecting optical fibers.

Types:

• SC, LC, and MPO connectors for high-density fiber networks.

Key Takeaway

High-speed photodetectors and other critical optoelectronic devices are indispensable for the operation and performance of optical fiber communication systems. Advancements in these technologies continue to drive the evolution of high-speed data transmission. The ongoing development of more efficient, reliable, and cost-effective optoelectronic devices will undoubtedly shape the future of telecommunications, enabling higher data rates, longer transmission distances, and more complex optical networks.
