High-Speed Photodetectors: Balancing Responsivity and Quantum Efficiency
High-speed photodetectors are indispensable components in modern optical communication, image sensing, and LiDAR applications. Their performance directly influences the efficiency and reliability of the entire system. Among the key parameters that determine their effectiveness, responsivity and quantum efficiency are two of the most critical. These parameters are inherently interrelated, and achieving an optimal balance between them is essential for the design of high-speed photodetectors.
This article delves into the definitions and physical significance of responsivity and quantum efficiency, explores their mathematical relationship, and provides an in-depth analysis of the trade-offs involved in designing high-speed photodetectors.
Definitions and Physical Significance of Responsivity and Quantum Efficiency
1. Responsivity
Responsivity (R) is a measure of a photodetector’s ability to convert incident optical power into an electrical signal. It is typically expressed in amperes per watt (A/W) when referring to photocurrent or volts per watt (V/W) when referring to photovoltage. A higher responsivity indicates greater sensitivity to incoming light, meaning that for the same amount of incident optical power, the photodetector produces a stronger electrical signal.
Several factors influence responsivity, including:
- Absorption coefficient of the detector material: Materials with higher absorption coefficients absorb more photons, leading to increased carrier generation and, consequently, higher responsivity.
- Device structure: The design of the detector, such as p-i-n photodiodes and avalanche photodiodes (APDs), impacts carrier collection efficiency and transport speed, affecting responsivity.
- Wavelength of incident light: Since a material’s absorption coefficient varies with wavelength, responsivity also varies accordingly.
- Bias voltage: The applied bias voltage influences carrier transport and collection efficiency, thereby affecting responsivity.
2. Quantum Efficiency
Quantum efficiency (η) represents the efficiency with which incident photons are converted into electron-hole pairs. It is defined as the ratio of the number of generated electron-hole pairs to the number of incident photons and is typically expressed as a percentage.
Quantum efficiency is affected by:
- Absorption properties of the material: Materials with higher photon absorption rates will generate more carriers, improving quantum efficiency.
- Surface reflection: Reflections at the detector surface lead to optical losses, reducing quantum efficiency.
- Carrier collection efficiency: Even if photons are absorbed, the generated carriers must be effectively collected; otherwise, quantum efficiency decreases.

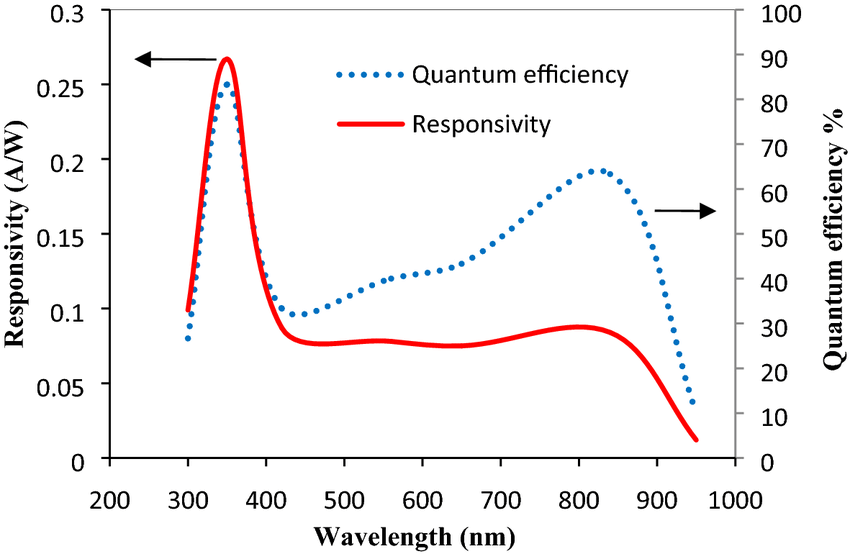

3. Relationship Between Responsivity and Quantum Efficiency
Responsivity and quantum efficiency are mathematically related through the following equation:
R = (ηqλ) / (hc)
Where:
- R is responsivity (A/W)
- η is quantum efficiency
- q is the elementary charge
- λ is the incident light wavelength
- h is Planck’s constant
- c is the speed of light
This equation reveals that responsivity is directly proportional to quantum efficiency and the wavelength of the incident light.
Physical connections
- Quantum efficiency is an intrinsic property of the material and device, reflecting the photon-to-electron conversion efficiency.
- Responsivity is an extrinsic measure, representing the ratio of the output electrical signal to the input optical signal in practical applications.
Essential differences
- Quantum efficiency focuses on the efficiency of photon-to-electron-hole pair conversion, a microscopic physical process.
- Responsivity focuses on the ability to convert optical power into electrical signals, a macroscopic ratio of electrical signal output to optical power input.
Balancing Responsivity and Quantum Efficiency in High-Speed Photodetectors
Designing high-speed photodetectors requires a careful balance between responsivity and quantum efficiency to achieve optimal performance. Below are key strategies to achieve this balance:
1. Material Selection and Optimization
- High Absorption Coefficient Materials: Selecting materials with high absorption coefficients ensures efficient photon absorption and electron-hole pair generation. For example, InGaAs is suitable for communication wavelengths, while silicon is ideal for visible and near-infrared regions.
- High Carrier Mobility Materials: Materials with high carrier mobility enhance carrier transit speed, improving responsivity. Optimizing crystal quality by reducing defects and impurities further enhances carrier mobility.
- Crystal Quality Optimization: Improving the crystalline quality of materials reduces defects and impurities, enhancing both carrier mobility and lifetime, which in turn improves responsivity and quantum efficiency.

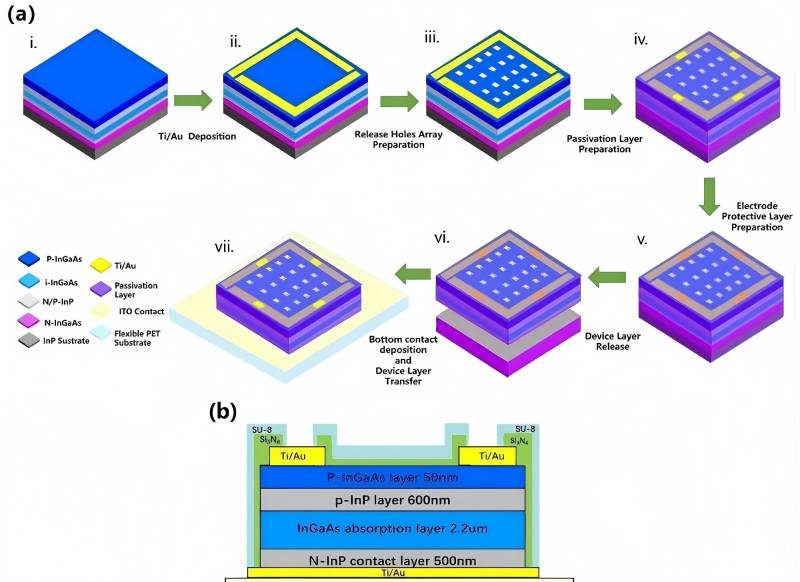

2. Device Structure Design
- Thin Absorption Layer Design: Reducing the thickness of the absorption layer shortens carrier transit distances, improving response speed. However, excessively thin layers may reduce quantum efficiency due to incomplete photon absorption. A trade-off between response speed and quantum efficiency is necessary.
- p-i-n Structure Optimization: The p-i-n structure generates a strong electric field, enhancing carrier collection efficiency and improving both quantum efficiency and responsivity. Optimizing the intrinsic layer’s thickness and doping concentration is crucial for balancing performance.
- Anti-Reflection Coatings: Applying anti-reflection coatings on the detector surface minimizes reflection losses, increasing quantum efficiency. Selecting appropriate coating materials and thicknesses is essential for optimal performance.
3. Circuit Design
- Transimpedance Amplifier Selection: Using low-noise, high-bandwidth transimpedance amplifiers convert the photodetector’s weak current signal into a voltage signal. Optimizing amplifier bandwidth and gain ensures effective signal processing.
- Transmission Line Optimization: Designing transmission lines with proper impedance matching and layout reduces signal reflection and loss, enhancing response speed. High-speed transmission line materials and connectors minimize signal delay and distortion.
4. Operating Condition Optimization
- Bias Voltage Optimization: Adjusting the bias voltage improves carrier collection efficiency and transit speed. However, excessively high bias voltages increase dark current and noise.
- Temperature Control: Lowering the operating temperature reduces dark current and noise, improving the signal-to-noise ratio. However, this may increase system complexity and cost.
Final Thoughts
Balancing responsivity and quantum efficiency is a central challenge in the design of high-speed photodetectors. Through careful optimization of materials, device structures, circuits, and operating conditions, it is possible to achieve photodetectors with high speed, sensitivity, and efficiency. As applications in optical communication, image sensing, and LiDAR continue to advance, the demand for high-performance photodetectors will grow. Future research will focus on exploring novel materials, device architectures, and circuit designs to further enhance responsivity, quantum efficiency, and SNR, meeting the evolving needs of these cutting-edge technologies.
