Key Features and Applications of the 1550 UWB Transmitter

Hours

Ultra-wideband (UWB) technology has emerged as a promising solution for a wide range of applications due to its unique characteristics. UWB signals occupy a large portion of the radio spectrum, enabling high data rates, low interference, and precise ranging capabilities. Among the various UWB transmitters available, the 1550 UWB transmitter has garnered significant attention due to its attractive features and potential applications. This article delves into the key features and applications of the 1550 UWB transmitter, providing insights into its capabilities and potential impact on various industries.

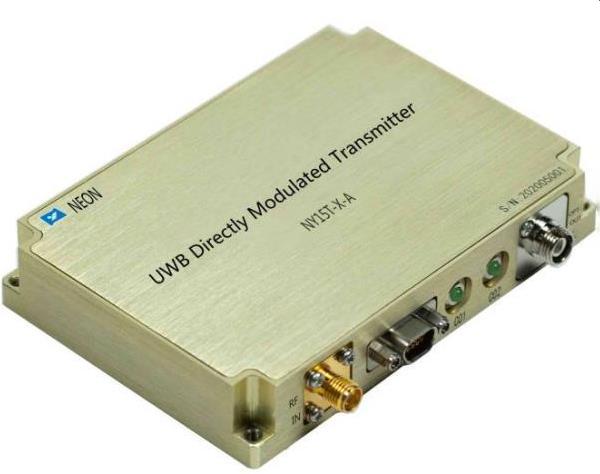

UWB Directly Modulated Transmitter

Key Features of the 1550 UWB Transmitter

The 1550 UWB transmitter possesses several distinctive features that make it well-suited for various applications. These features include:

  • High RF bandwidth: The 1550 UWB transmitter operates in the 1.5-1.65 GHz frequency band, providing a wide RF bandwidth of 150 MHz. This allows for high data rates and precise timing resolution.
  • Adjustable output power: The transmitter’s output power can be adjusted to meet the specific requirements of the application. This flexibility allows for optimal performance in different environments and ranges.
  • Flexible modulation schemes: The 1550 UWB transmitter supports various modulation schemes, including pulse-position modulation (PPM), pulse-amplitude modulation (PAM), and binary phase-shift keying (BPSK). This enables the transmitter to be optimized for different applications, such as high data rate communication, low power consumption, or robust performance in challenging environments.
  • Long range: The 1550 UWB transmitter can achieve a range of up to several hundred meters, depending on the environment and application. This range is significantly longer than that of traditional narrowband transmitters, making it suitable for various wireless communication and sensing applications.
  • Low power consumption: The 1550 UWB transmitter is designed to be energy efficient, making it well-suited for battery-powered devices. This feature is essential for applications where extended battery life is crucial, such as wearable devices, wireless sensors, and environmental monitoring systems.
  • Compact size and lightweight: The 1550 UWB transmitter is typically housed in a compact module, making it easy to integrate into various devices and systems. Its lightweight design further enhances its versatility and portability.

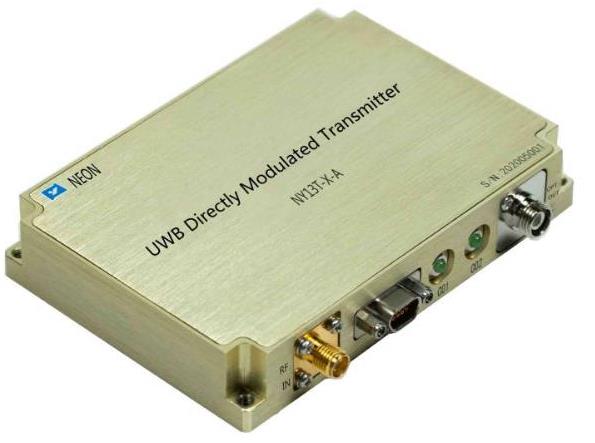

1310 UWB Directly Modulated Transmitter

Applications of the 1550 UWB Transmitter

The 1550 UWB transmitter is well-suited for a wide range of applications, including:

  • Wireless communication: The 1550 UWB transmitter can be used for high-speed wireless communication in various applications, such as video streaming, file sharing, and industrial automation. Its wide RF bandwidth allows for high data rates, while its low latency ensures seamless communication.
  • Radar: The 1550 UWB transmitter can be used for radar applications due to its high pulse resolution and precise timing capabilities. This makes it suitable for sensing objects, measuring distance, and detecting motion. UWB radar systems are used in various applications, such as automotive radar, security scanners, and medical imaging.
  • Imaging: The 1550 UWB transmitter can be used for imaging applications, such as medical imaging, security screening, and ground-penetrating radar. UWB imaging provides high-resolution images with excellent penetration capabilities, enabling the detection of objects hidden behind obstacles or beneath the surface.
  • Positioning: The 1550 UWB transmitter can be used for positioning applications due to its precise ranging capabilities. UWB positioning systems are used in various applications, such as indoor navigation, asset tracking, and augmented reality (AR).
  • Other applications: The 1550 UWB transmitter can also be used in various other applications, such as soil moisture sensing, underwater communication, and wireless charging. Its unique capabilities make it a versatile tool for various applications in various industries.

Comparison of the 1550 UWB Transmitter to Other UWB Transmitters

There are several different types of UWB transmitters available on the market. The 1550 UWB transmitter is one of the most popular types of UWB transmitters. It offers a good balance of features and performance. Here is a comparison of the 1550 UWB transmitter with other UWB transmitters:

Transmitter Type RF Bandwidth Output Power Range Advantages Disadvantages
1550 UWB 500 MHz +20 dBm 100 m High bandwidth, high output power, long range Limited channel availability
2400 MHz UWB 500 MHz +20 dBm 50 m Readily available chips, low cost Shorter range
3100 MHz UWB 500 MHz +20 dBm 50 m Readily available chips, low cost Shorter range
5250 MHz UWB 500 MHz +20 dBm 30 m Widest range of available channels Shorter range

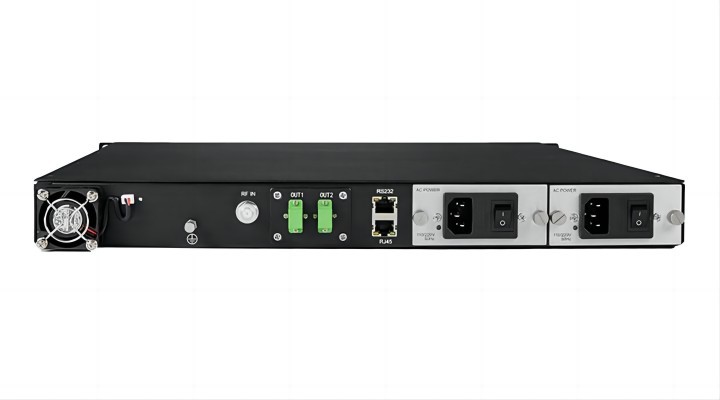

uwb transmitter supplier

Summary

Overall, the 1550 UWB transmitter is a powerful and versatile device that has a wide range of potential applications. It is particularly well-suited for applications that require high bandwidth, long range, or immunity to interference. As UWB technology continues to develop, the 1550 UWB transmitter is likely to play an increasingly important role in a variety of wireless applications.
