NY15T Series UWB Directly Modulated Transmitter
NY15T Transmitters are mainly composed of a high-speed directly modulated DFB laser, an automatic optical power control circuit, an automatic temperature control circuit, a voltage-stabilizing conversion circuit, and a monitoring and indicating circuit.
NY15T Transmitter works at 1550nm. The modulation bandwidth is better than 18GHz. Output power can reach 10mW. Take good stability of output wavelength. The power supply of the NY15T Transmitter is a single positive power supply, which can work stably in the voltage range of +7V ~+36V.
Besides, the NY15T Transmitter also has the function of indicating that the power supply and optical power output are normal.
Product Features
- Ultra-wideband (better than 18GHz )
- Operating case temperature:（-40℃～70℃）
- Wavelength 1550nm
- Excellent side mode suppression ratio
- Highly integrated, module packaging
- High-Dynamic-Range
- High output power
Application
- Antenna＆Radar
- Electronic countermeasure system
- Analog RF links transmission
- Broadband Wireless Communication
- Mobile communication base station
Absolute Maximum Ratings
|
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Unit |
|
Storage temperature |
TSTG |
-55 |
+25 |
+85 |
℃ |
|
Operation temperature |
TC |
-40 |
+25 |
+70 |
℃ |
|
RF input power1 |
Pin |
– |
+10 |
+20 |
dBm |
|
Voltage |
Vin |
+7 |
+12 |
+36 |
V |
(1) Continuous wave (CW) working mode.
Optical and Electrical Specification (TC = 22±3℃)
| Parameter | Symbol | Condition | Min. | Typ. | Max. | Unit |
| Wavelength | λ | – | – | 1550 | – | nm |
| Frequency（3dB） | f3dB | X band | 0.1 | – | 12 | GHz |
| Ku band | 1 | – | 18 | |||
| Light output power | P | – | 5 | 10 | – | mW |
| Relative Intensity Noise | RIN | – | – | – | -155 | dBc/Hz |
| Return loss（VSWR） | VSWR | X band | – | – | 2 | – |
| Ku band | – | – | 2.2 | |||
| Input 1 dB Compression | – | – | +13 | +15 | – | dBm |
Power Supply (TC = 22±3℃)
|
Parameter |
Min. |
Typ. |
Max. |
Unit |
|
Voltage |
+7 |
+12 |
+36 |
V |
|
Current（1） |
0.07 |
0.1 |
1 |
A |
- Test
- condition: Vin=+12V

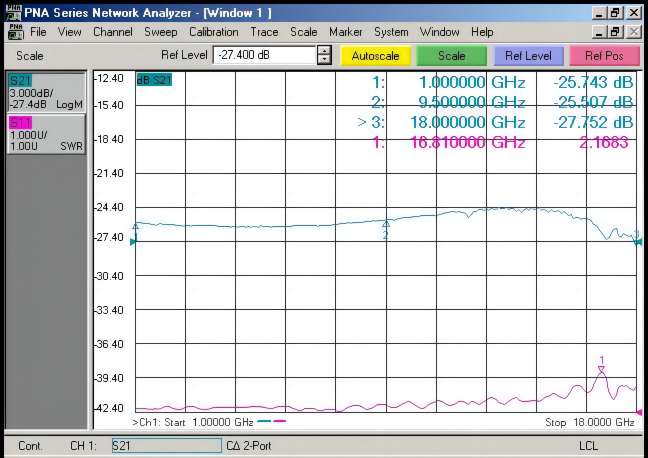

Typical Response Curve

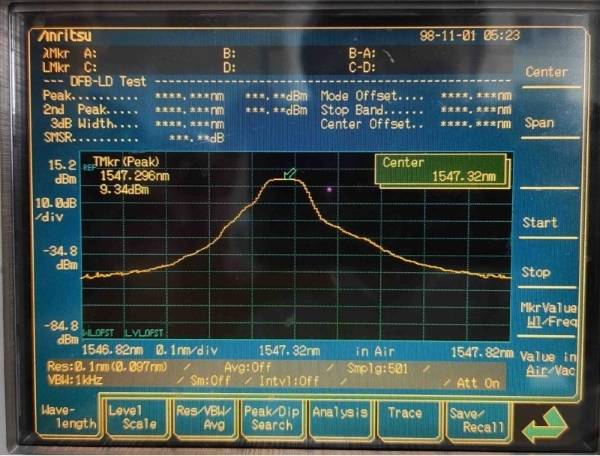

Typical Spectrogram

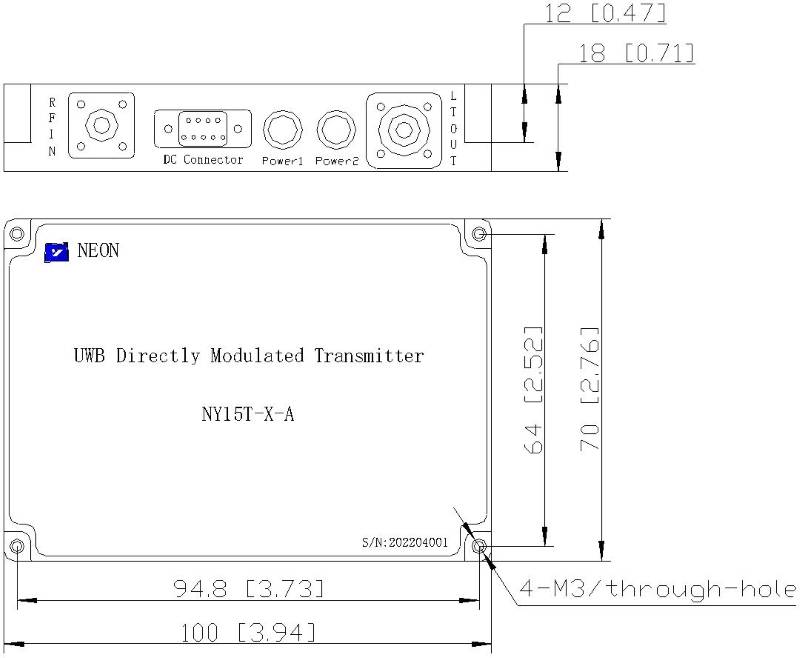

Dimension Unit: mm[inch]
RF Connector: SMA
Power Connector: J30J-9-ZKP
Pin Of Power Supply
|
Parameter |
Description |
||||||||
|
Pin |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
|
Voltage |
+12V |
NC |
GND |
NC |
|||||

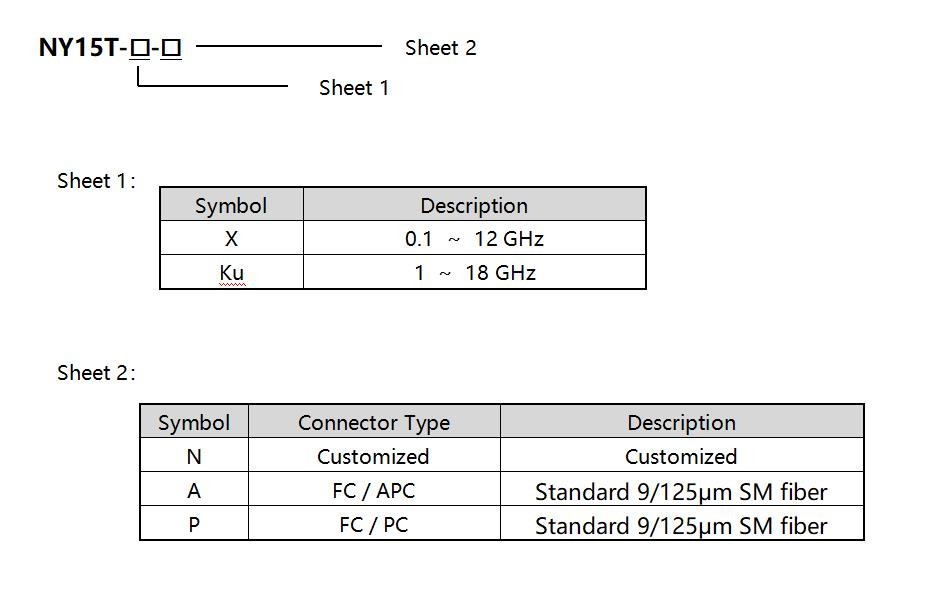

Order Information
