NYCMT Series UWB Directly Modulated Transmitter
NYCMT Transmitters are mainly composed of high-speed directly modulated DFB laser, automatic optical power control circuit, automatic temperature control circuit, voltage-stabilizing conversion circuit, monitoring and indicating circuit.
The wavelength of NYCMT is optional (1270nm, 1290nm, 1310nm, 1330nm, 1350nm, 1370nm, 1390nm). Its modulation bandwidth is better than 18GHz, output power can reach 10mW. A single positive power supply can make NYCMT work stably in the voltage range of +7V ~+36V. NYCMT takes many advantages, such as low relative intensity noise, good stability of output wavelength, high output power, etc.
Besides, the NYCMT Transmitter has the indicating function, which shows whether the power supply and optical power output are normal or not.
Features of UWB Directly Modulated Transmitter
- Ultra-wideband (better than 18GHz )
- CWDM
- High-Dynamic-Range
- High output power
- Low RIN
- Operating case temperature:（-40℃～70℃）
Applications of UWB Directly Modulated Transmitter
- Antenna＆Radar
- Electronic countermeasure system
- Analog RF links transmission
- Broadband Wireless Communication
- Mobile communication base station
Absolute Maximum Ratings
|
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Unit |
|
Storage temperature |
TSTG |
-55 |
+25 |
+85 |
℃ |
|
Operation temperature |
TC |
-40 |
+25 |
+70 |
℃ |
|
RF input power1 |
Pin |
– |
+10 |
+20 |
dBm |
|
Voltage |
Vin |
+7 |
+12 |
+36 |
V |
- Continuous wave (CW) working mode.
Optical and Electrical Specification (TC = 22±3℃)
|
Parameter |
Symbol |
Condition |
Min. |
Typ. |
Max. |
Unit |
|
Wavelength |
λ |
– |
1370 |
CWDM |
1390 |
nm |
|
Frequency（3dB） |
f3dB |
X band |
0.1 |
– |
12 |
GHz |
|
Ku band |
1 |
– |
18 |
|||
|
Light output power |
P |
– |
5 |
10 |
– |
mW |
|
Relative Intensity Noise |
RIN |
– |
– |
– |
-155 |
dBc/Hz |
|
Return loss（VSWR） |
VSWR |
X band |
– |
– |
2 |
– |
|
Ku band |
– |
– |
2.2 |
|||
|
Input 1 dB Compression |
– |
– |
+13 |
+15 |
– |
dBm |
Power Supply (TC = 22±3℃)
|
Parameter |
Min. |
Typ. |
Max. |
Unit |
|
Voltage |
+7 |
+12 |
+36 |
V |
|
Current（2） |
0.07 |
0.1 |
1 |
A |
- Test condition: Vin=+12V

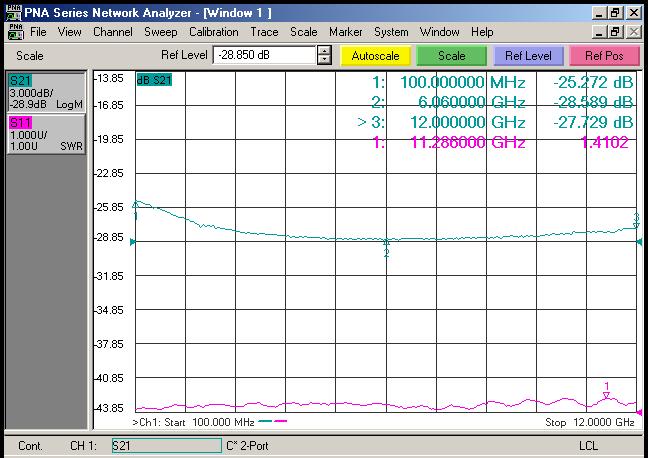

Typical Response Curve

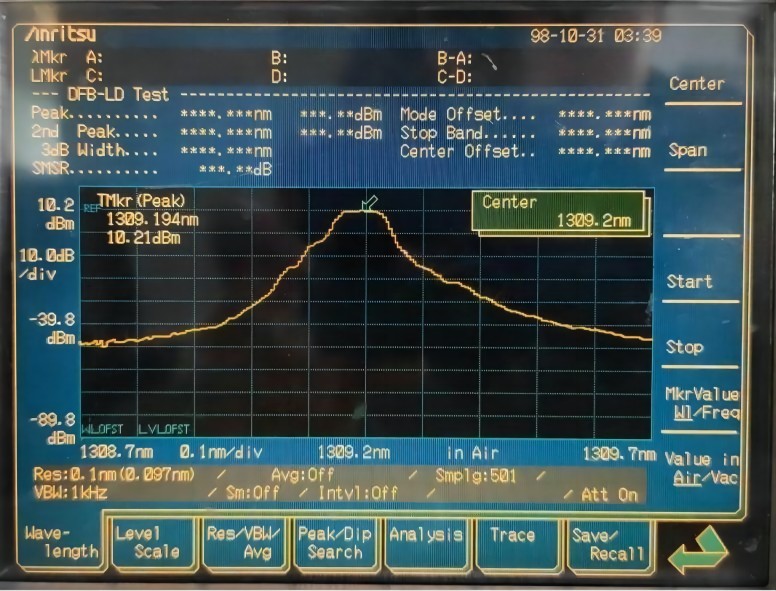

Typical Spectrogram

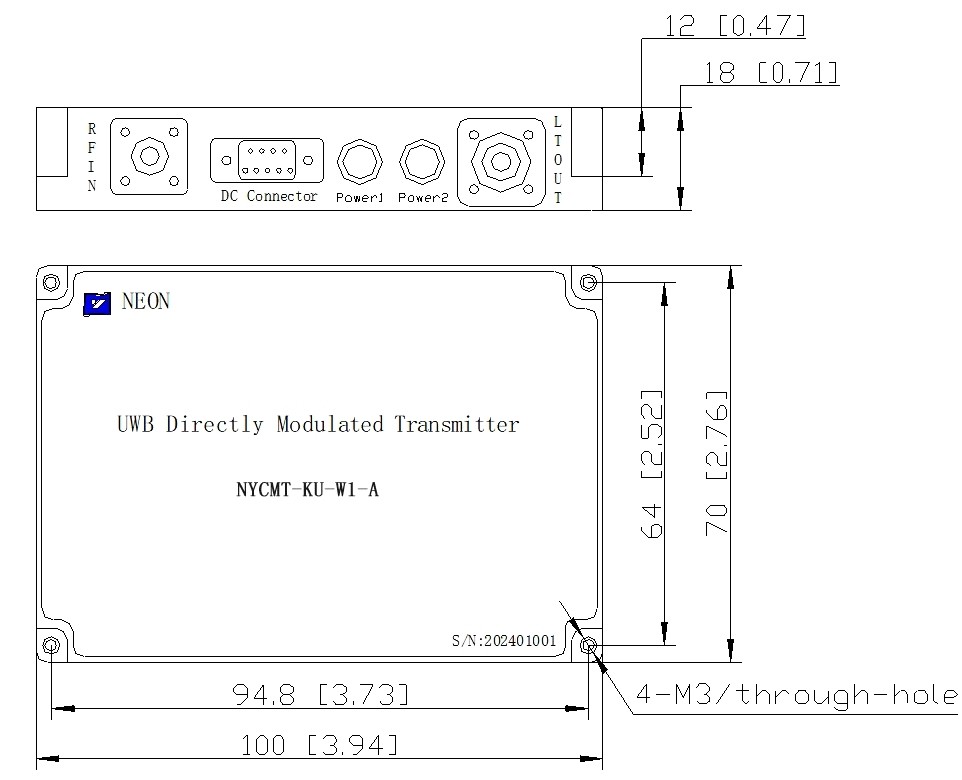

Dimension Unit: mm[inch]
RF Connector: SMA
Power Connector: J30J-9-ZKP
Pin Of Power Supply
|
Parameter |
Description |
||||||||
|
Pin |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
|
Voltage |
Vin |
NC |
GND |
NC |
|||||

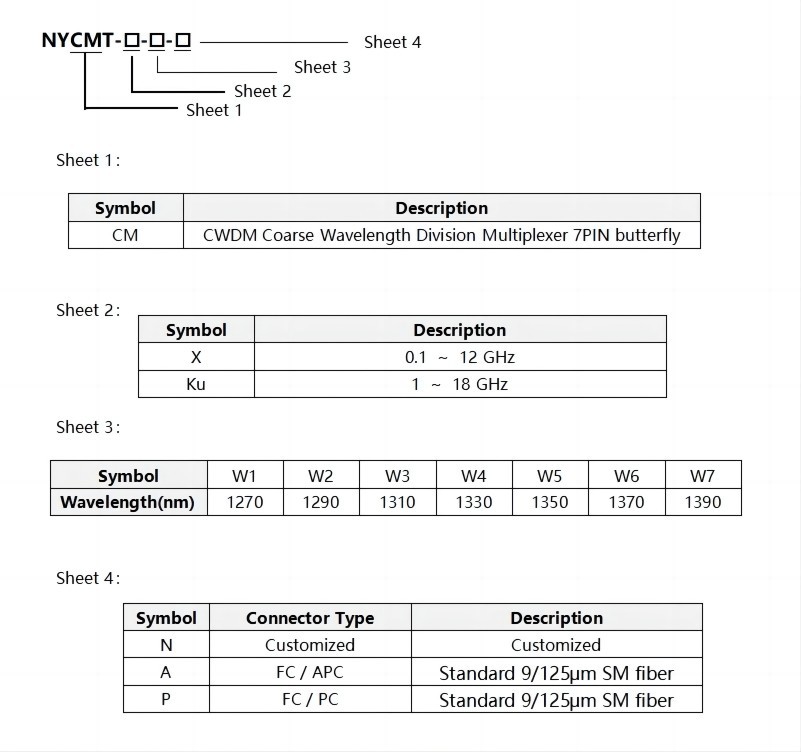

Order Information
