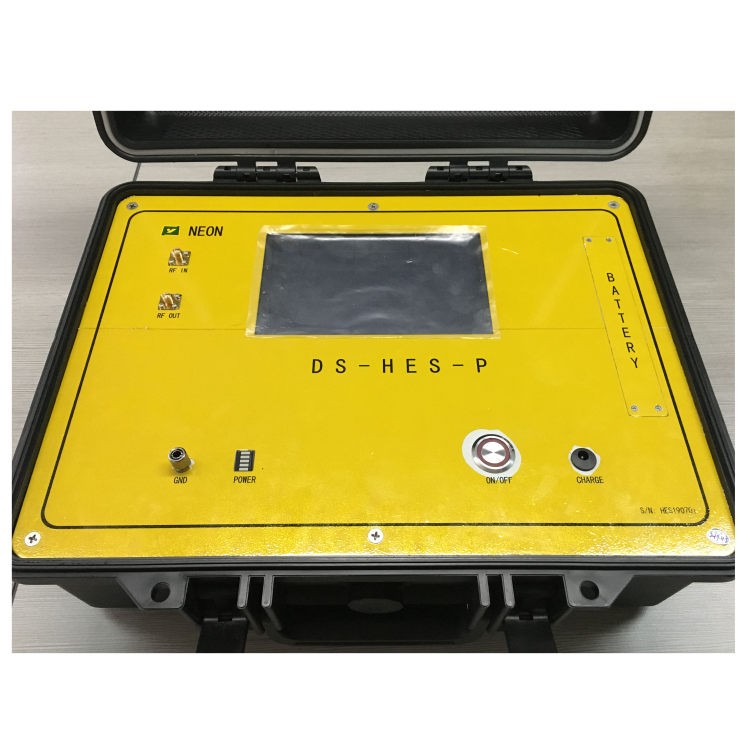

DS-HES-P Radio Altimeter Simulator (Portable)
- DS-HES series radio altimeter system simulator is a photoelectric delay system specially developed for various radio altimeter simulators’ productions, measurements, and maintenance. The systems depend on the technology of the fiber-optic delay line, using fiber-optic lines as the carrier, and the feature of light delay to simulate RF microwave signals’ space transmission distance. In addition, with this technology, the systems can simulate and measure different heights’ transmission.
- Compare with traditional SAM(surface acoustic wave) delay line systems, DS-HES series products have more advantages such as a wide working frequency band, high straight suppression ratio, triple transit signals that are immeasurable, long-life operation without calibration, and high work reliability.
Features of the Radio Altimeter System Simulator
※ Wide simulated height range(0 to 22000 above );
※ High simulate altimeter accuracy(≥1‰);
※ Optional simulate configuration(support more than 210 configurations);
※ Manual switch and automatic switch ;
※ Volume miniaturization, strong electromagnetic compatibility, high work reliability;

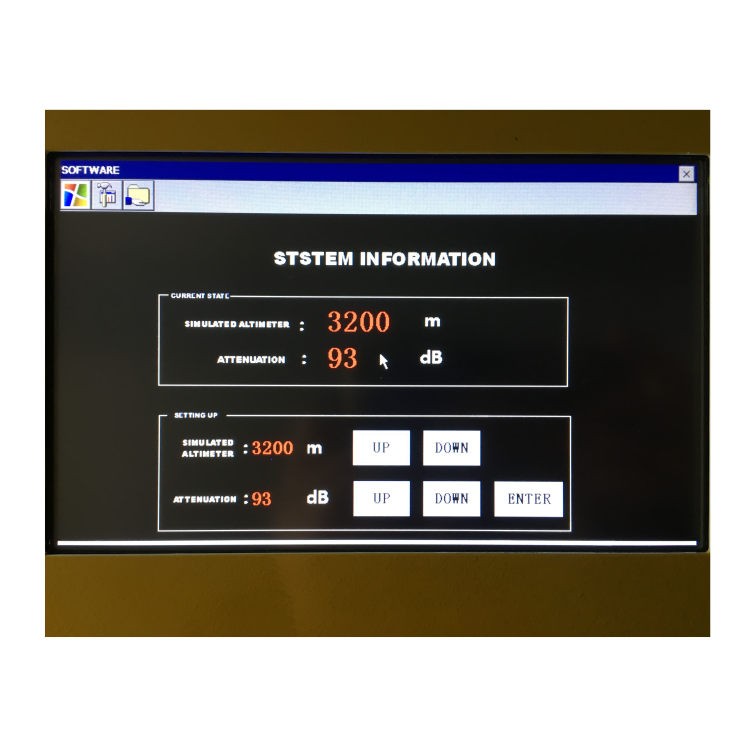

※ Multiple control mode: UART, LAN, etc.;
※ Various standard test platforms interfaces such as PXI, VXI, and LXI.
Application of the Radio Altimeter System Simulator
Place: Radio altimeter for radar, AEW, satellite, helicopter, etc.
※ Measure the accuracy of the altimeter
※ Measure the sensitivity of research and tracking
※ Measurement of other parameters
Electrical/Optical Characteristics
| Parameter | Parameter values | Unit | Remark | ||
| Min | Typical | Max | |||
| Frequency range | 4 | – | 4.6 | GHz | |
| Amplitude response | – | ±1.5 | ±2 | dB | |
| Simulate height | 1 | – | 22000 | m | Extensible |
| Simulate height’s accuracy | 0.50% | 1% | – | – | |
| Maximum input power | – | 2 | Customized | W | Continuous-wave |
| – | 100 | Customized | W | Pulse wave | |
| Input VSWR | – | 1.3 | 1.5 | – | |
| Output VSWR | – | 1.3 | 1.5 | – | |
| Impedance | – | 50 | – | Ω | |
| Simulate attenuation’s adjustable range | – | 80 | Customized | dB | |
| straight suppression ratio | 60 | 80 | – | dBc | |
| triple transit signals | No | ||||
| Operating Temperature Range | -40 | – | 70 | ℃ | Customized with quality grade |
| Storage Temperature Rang | -55 | – | 85 | ℃ | |
| Simulate height vs. Temperature | – | – | 7 | ppm/℃ | |
| Simulate accuracy vs. Temperature | – | 3 | 6 | %/℃ | Can be compensated |

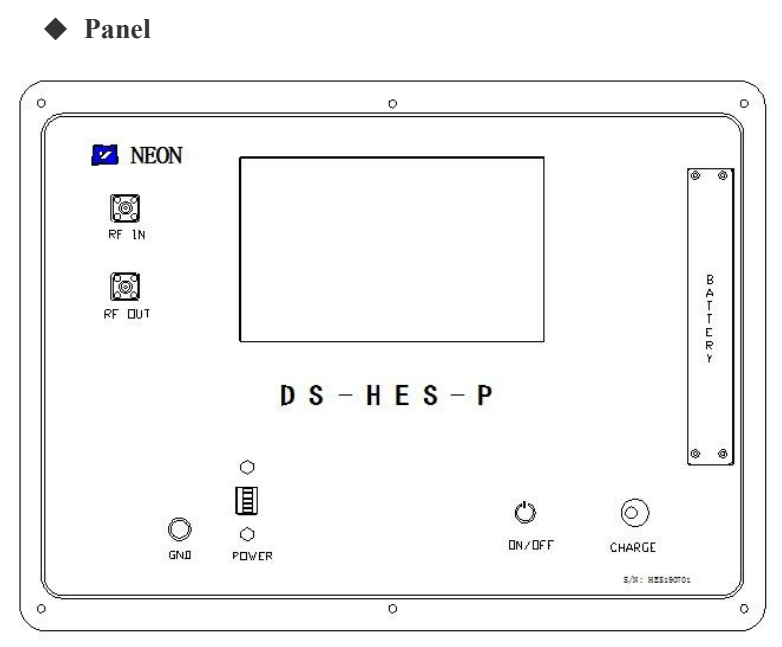

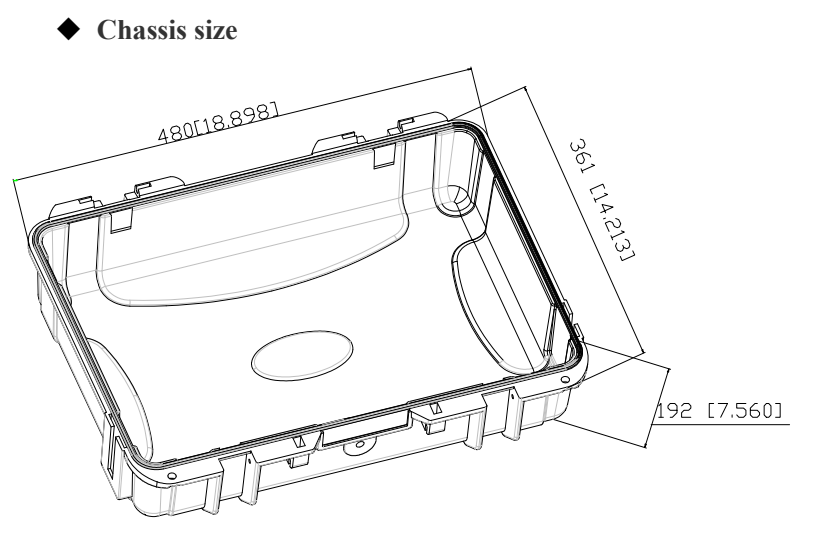

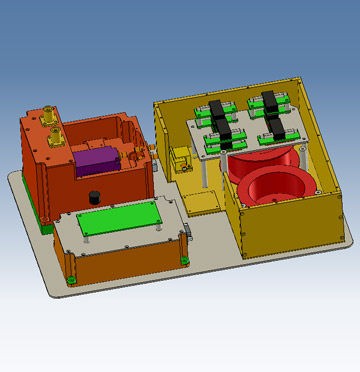

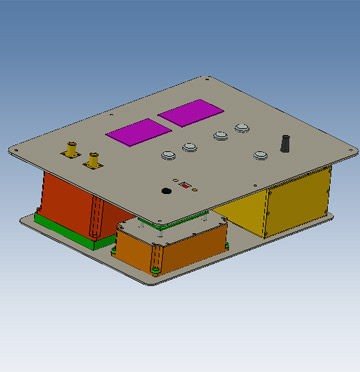

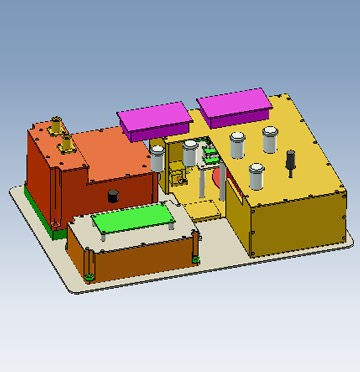

The packages and the pins (Unit: mm[inch])
RF connector： SMA-K（Customized）
DC connector： DE-9PS（Customized)
